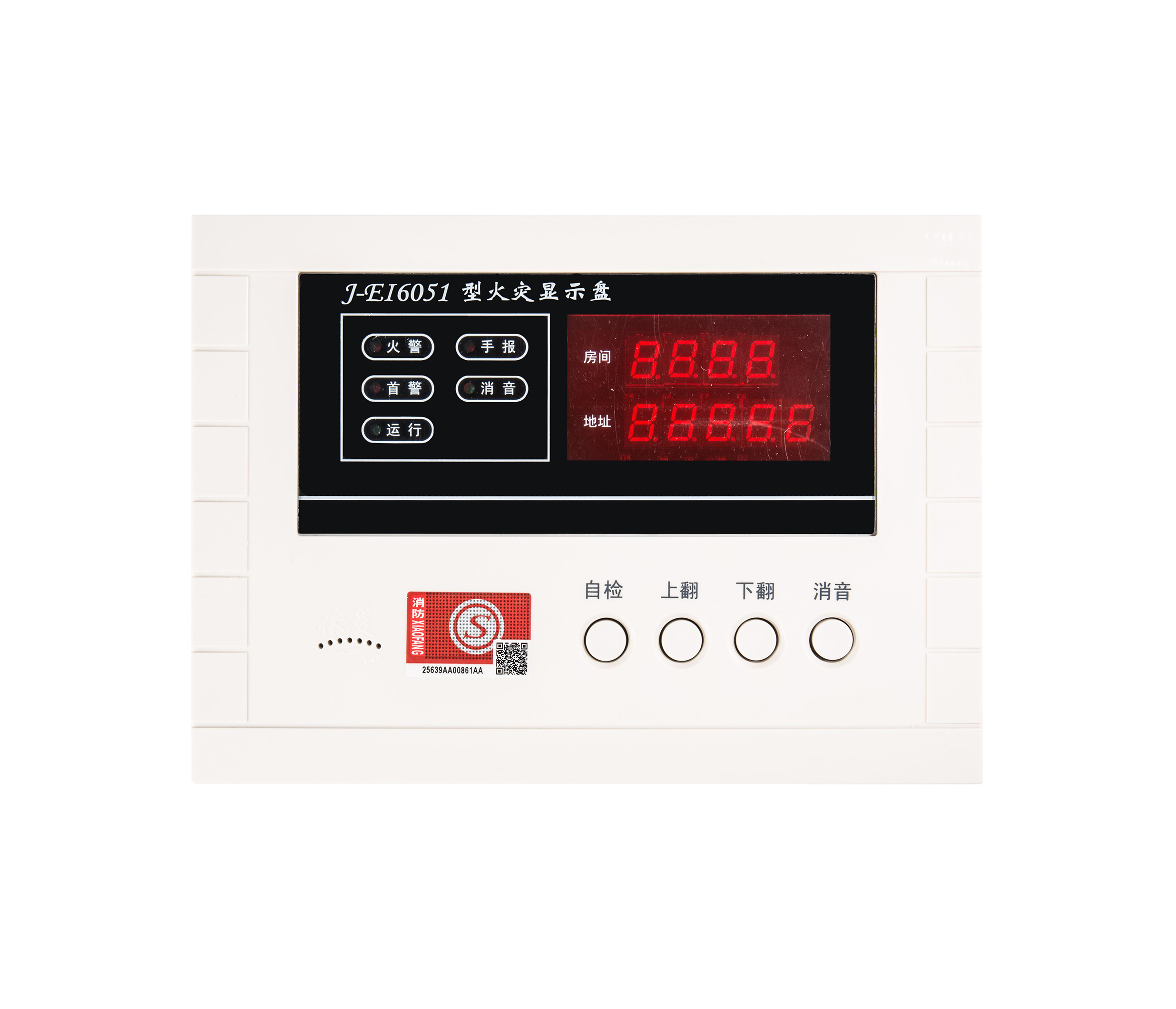

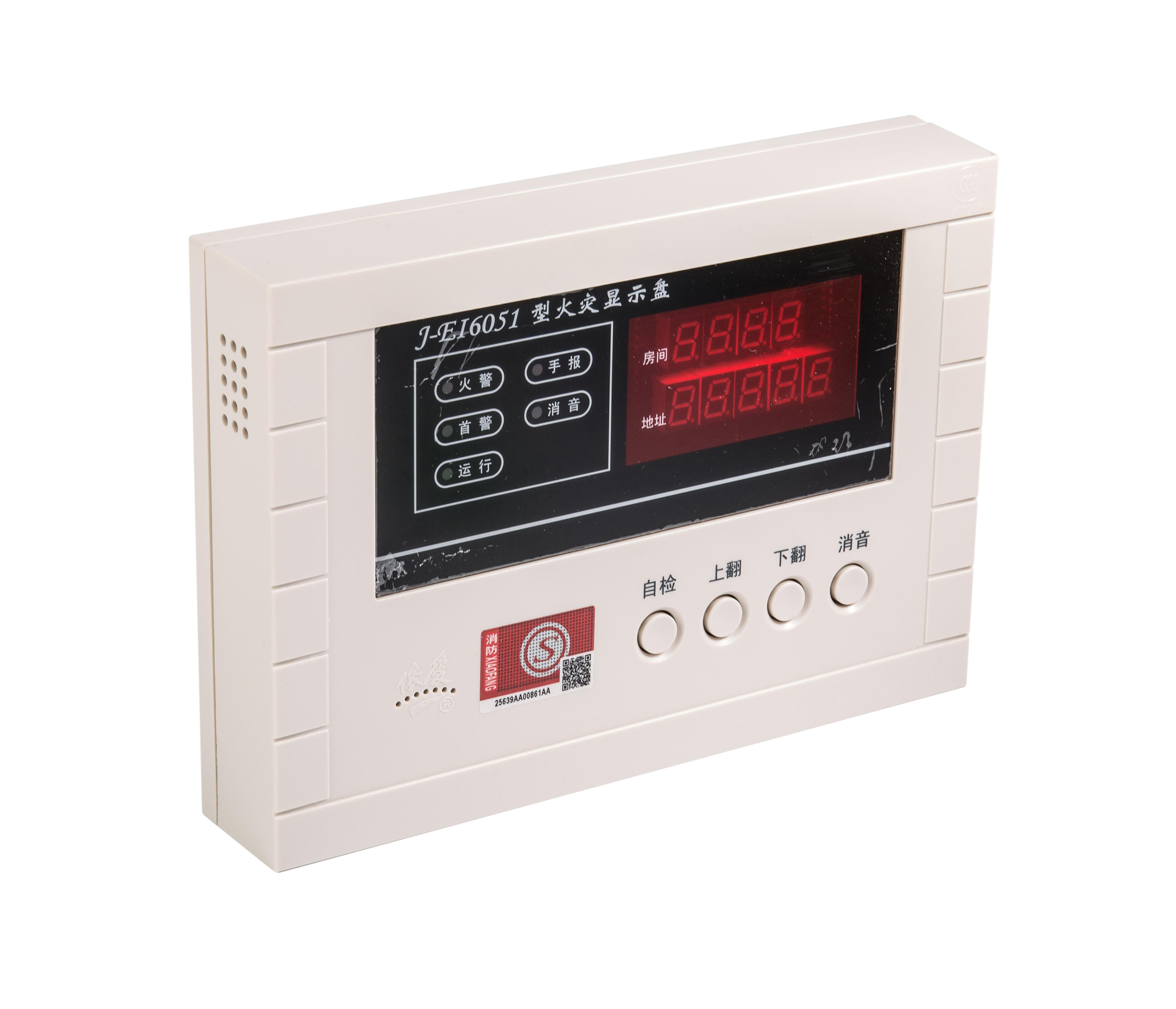

Fire display panel is jointly used with fire alarm controller. It can be connected to the alarming linkage bus to display information of fire alarm, monitoring, failure, and operating in different floors or sections. The information is displayed in Chinese characters in LCD, and it comes with acousto-optic indication which is clear and direct.
·Through field programming, you can set to fire display or repeat display.
· As a fire display panel, it displays information of fire alarm, monitoring, failure, and operating of relevant floors, and sends off acoustic and optic alarm signals.
The LCD displays the address, total number, times of alarming, as well as component type and place of installation.
· As a repeating display, it displays all information of fire alarm, monitoring, failure, and operating so that the system can be monitored outside of the fire control center.
· Electronically encoded with only one ID; online addressing by controller or addressing by encoder; automatic log-in.
· Directly connected to the alarming linkage bus, convenient installation and wiring.
· Snap-fit design, baseboard wiring, convenient use.
· Shaped through injection molding; good-looking appearance, small structure and convenient installation.
· Floor/section display; cross-floor/section display; all display (≤999); it can be directly connected to the alarming linkage bus; convenient use; large capacity.
· Working temperature: －10℃ ～ +40 ℃
· Working humidity: ＜95% RH (No condensation of moisture)
· Working voltage: Bus 24V Pulsating voltage
· Power supply DC 24V±1015%
· Bus working current: ≤0.35mA
· Wiring: Directly connected to the alarming linkage bus
· Standby current: ≤40mA（DC 24V）
· Alarm current: ≤70mA （DC 24V）
· Display capacity: 999 alarm messages
· Wiring system: Four-wire system, non-polarized bus
· Bus length: ＜1500m
