Overview:

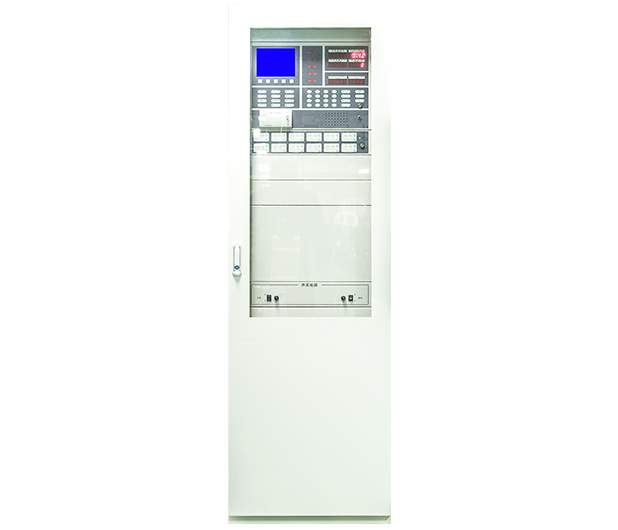

EI8000G/ EI8000T fire alarm controller (linkage type) integrates various functions such as fire alarm, linkage control, supervision alarm, anti-theft alarm, flammable gas alarm, intercom telephone,network communication, etc. It is suitable for all kinds of hotels, office buildings .Large and medium-sized fire alarm projects such as buildings, residential buildings, gymnasiums, libraries, and various warehouses.
Basic Functions:
Fire alarm function：can receive fire alarm signals through fire detectors such as smoke detectors, heat detectors, relay modules, manual call point, etc., and display fire alarm information. Composite judgment can be made based on adjacent detectors.
Supervision alarm function: can receive the supervision alarm signals such as burglary alarm and gas alarm through the input module, and can realize linkage.
Shielding function: can shield various bus components and the fire sound strobe alarm output.
Fault detection function: can automatically detect line faults, component faults, power faults, etc., and issue fault alarms with sound and light signals to display fault information.
System test function: can log in part number and current address, can directly set and program address; can check detector detection value; Ability to self-test any part of the loop.
Special
Functions:
Linkage
control function: The EI series input/output
modules can be connected via four buses (including 24V power lines), and
various types of fire-fighting equipment can be controlled in a flexible and
diverse manner according to the alarm information, and the linkage points are
not limited, and the user's needs can be met to the maximum extent. Displays
feedback information about device actions, including device type, module type,
module address, installation location, and action time.
Optional bus linkage control panel, through
programming can realize control of various types, zones, and specific
components.
Optional multi-line linkage control panel,
direct output linkage control, 12 sets of multi-line linkage buttons for each
control panel, used to control important equipment such as fire pump, spray
pump and exhaust fan. When the multi-line linkage panel exceeds 2 blocks, the
external control power supply needs to be configured for the power supply of
the multi-line linkage panel.
Be provided with gas fire extinguishing
function, gas fire extinguishing equipment can be connected by bus to realize
manual/automatic
Manual/automatic switching is possible. in
the manual state, any device can be started or stopped by type, partition or
address through menu selection.
System
compatible function: It can be set as a centralized
controller, zone controller or independent fire alarm controller on site, and
can form a network communication system through EICAN/EINet?.
The zones controller can automatically
upload fire alarm, linkage control, fault alarm, supervision alarm, shielding,
delay, self-test and other information to the centralized controller, and
should be able to receive and process the relevant instructions of the
centralized controller.
The centralized controller can receive and
display fire alarm, linkage control, fault alarm, supervision alarm, shielding,
delay, self-test and other information from each zone controller, enter the
corresponding state, and can issue control commands to the area controller.
Network
communication function: It can connect zones alarm
controller, centralized alarm controller and fire control room graphic display
device to realize local area network communication through EINet/EICAN; it has
RS-232/485 serial communication interface, which can be connected with building
automation or other systems, remote communication can be carried out through
our remote monitoring system.
Programming
function: It can complete all programming through
the keyboard of the controller itself, can input Chinese characters directly,
and has built-in secondary standard Chinese character font. It can be used for
annotation of Chinese characters in any device in the system and its location.
It is very intuitive; it has extremely convenient screen editing function. Can
automatically prompt for the location of the data error and give the correct
range of data.
Auxiliary
functions:
Black
box function: It can automatically store historical
records such as fire alarm, warning, supervision, linkage, fault, shielding,
etc.
Query
function: It can query all fire alarm, warning,
supervision, linkage, fault, shielding and programming information, and can
query the required information in the most convenient way.
Print
function: It can automatically print real-time fire
alarm, warning, supervision information and linkage action information, and can
print parts list.
Automatic
switching between main and backup power: It can
automatically switch between main and standby power, and has corresponding
indications. The backup power has undervoltage protection function to avoid
damage to the battery due to excessive discharge.
Operation authority: In order to prevent unintentional personnel from misoperation, the operation level can be limited by password, and the password can be set arbitrarily.
? Ambient temperature: 0 °C ~ 40 °C;
Relative humidity: ≤ 95 % (non-condensing)
? AC input voltage: 220V±10/15%?, 50Hz±1%
? AC input power: ≤240W
? DC backup: DC24V/24Ah fully sealed
maintenance free battery
? Maximum loop capacity: 242 addressing
points
? Maximum total capacity: 4840 addressing
points
? Number of multi-line linkage control panels:
≤10 (each linkage panel has 12 sets of multi-line linkage buttons)
? Number of bus linkage control panels: ≤
20 (60 buttons per panel)
? Bus length: ≤ 2000 meters (cross-sectional
area ≥ 1.0mm2)

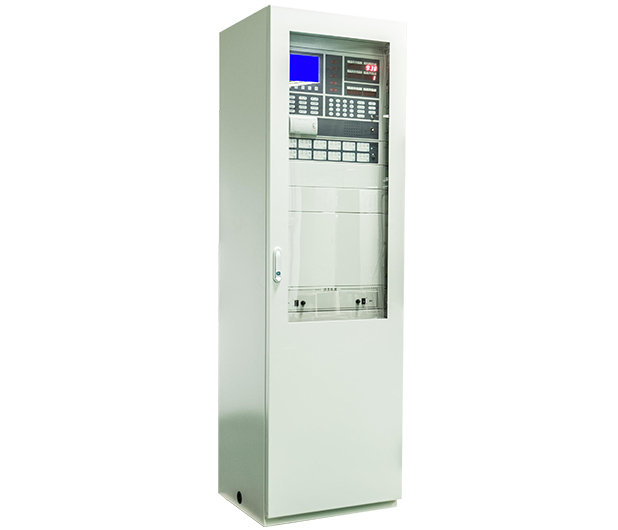

?Dimensions:545mm*485mm*1800mm( cabinet type)
1080mm*1120mm*1250mm (6000T piano type)
